Gun-type Three-point Internal Groove Micrometer for Measuring Internal Grooves
Description:
Gun-type Three-point Internal Groove Micrometer specifically engineered for measuring internal grooves, overcoming the limitations
of traditional tools to accurately and efficiently solve the measurement challenges of complex structures such as grooves and cutter slots.

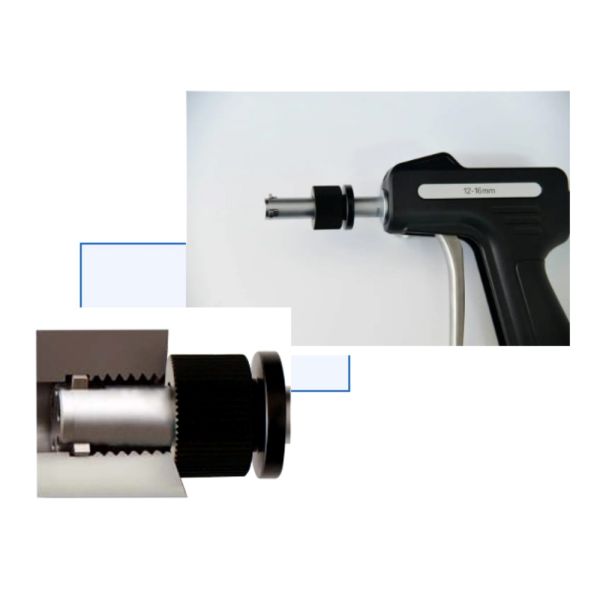

Gun-type three-point internal groove micrometer adopts three-point synchronous contact technology, featuring three measuring heads that
adaptively fit the inner wall of the groove—ensuring measurement data closely aligns with the actual diameter. Its ergonomic gun-shaped design
enables one-handed operation, significantly improving the measurement efficiency. Complemented by an intelligent Bluetooth digital display
system, it provides real-time visualization of high-precision data and supports wireless transmission to terminal devices, facilitating rapid analysis
and decision-making. This innovative technology redefines industrial measurement scenarios by balancing accuracy, efficiency, and an intelligent
user experience.
Internal groove gun type three point micrometer also focuses on high-precision internal thread measurement, tackling the longstanding
industry pain point: traditional tools’ inability to accurately detect thread pitch diameters.
Quick Detail:
1. Self-centering 3-point for accurate bore measuring.
2. Stepped measuring head makes it convenient to measure the diameter of the groove.
3. The rapid mobile measurement method is convenient for repeated measurement of grooves and rapid measurement of multiple products.
4. Within 100mm, supplied with setting rings.
5. Supplied in fitted case.
Specification:
| Order No. | Measuring Range | Measuring Width | Measuring Depth | Accuracy | Setting |
| KM-2306-8 | 6-8mm | 1.5mm | 1.5mm | 0.006mm | Φ6mm |
| KM-2306-10 | 8-10mm | 1.5mm | 1.5mm | 0.006mm | Φ8mm |
| KM-2306-12 | 10-12mm | 1.5mm | 1.5mm | 0.006mm | Φ10mm |
| KM-2306-16 | 12-16mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-20 | 16-20mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-25 | 20-25mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-30 | 25-30mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-40 | 30-40mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-50 | 40-50mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-63 | 50-63mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-75 | 62-75mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-88 | 75-88mm | 2mm | 3mm | 0.007mm | Φ87mm |
| KM-2306-100 | 87-100mm | 2mm | 3mm | 0.007mm | Φ87mm |
Set:
| Order No. | Measuring Range | Setting Ring |
| KM-2306S-12 | 6-8mm, 8-10mm, 10-12mm | Φ6mm Φ8mm Φ10mm |
| KM-2306S-20 | 12-16mm, 16-20mm | Φ16mm |
| KM-2306S-50 | 20-25mm, 25-30mm, 30-40mm, 40-50mm | Φ25mm Φ40mm |
| KM-2306S-100 | 50-63mm, 62-75mm, 75-88mm, 87-100mm | Φ62mm Φ87mm |
